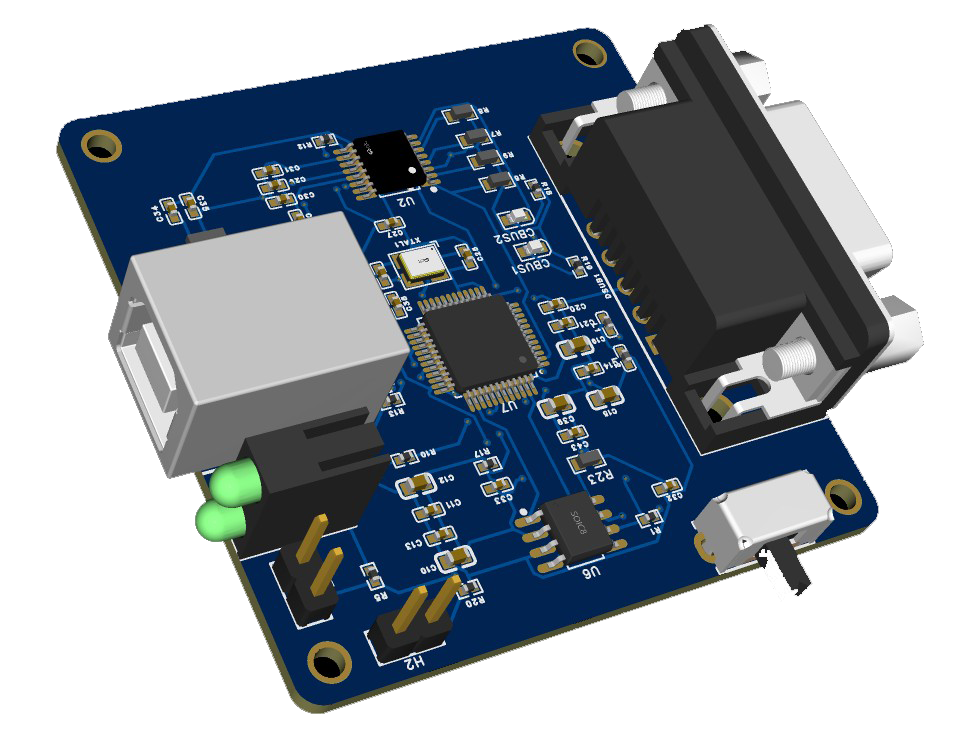

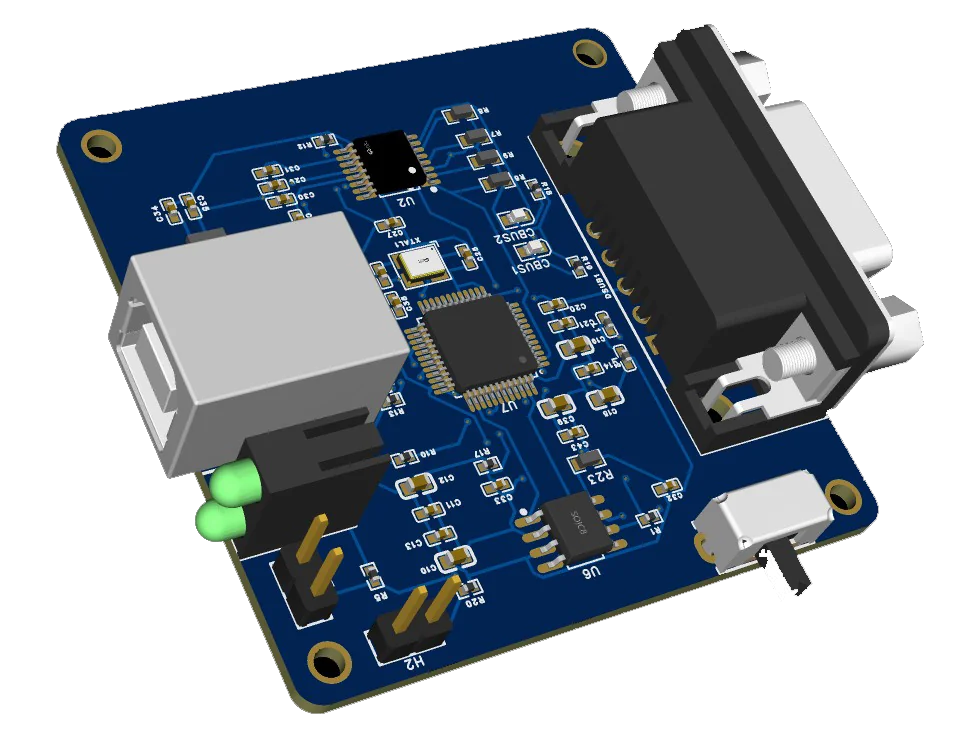

InkaTech USB‑to‑CAN Analyzer

A compact, high‑performance USB‑to‑CAN (FD) interface designed for engineers, developers, and automotive enthusiasts. Connect your PC to any CAN or CAN FD network for diagnostics, development, and real‑time data analysis.

🔧 Key Features

• Full CAN 2.0A (11‑bit) and 2.0B (29‑bit) support

• High‑speed CAN FD compliant with ISO 11898‑2

• Bit rates from 5 kbit/s up to 5 Mbps (FD)

• Standard DB9 (CiA® 106) CAN connector for compatibility with industry tools

• Powered directly through USB — no external supply needed

• Industrial‑grade operating range: –40°C to +85°C

🧠 Powered by TI Microcontroller Technology

Built around a high‑performance TI microcontroller and CAN transceiver running at 120 MHz, delivering fast, reliable CAN communication for demanding applications.

💻 Software Compatibility

Works seamlessly with both Windows® and Linux systems.

Supported Tools

• SavvyCAN

• Cangaroo

• BUSMaster

• SocketCAN

• python‑can

• Custom applications via SLCAN protocol

🖥️ InkaTech CAN Analyzer Software

Includes a custom Windows application for:

• Real‑time CAN monitoring

• Frame filtering

• Logging and exporting

• CAN FD support

• Firmware updates via built‑in bootloader

📘 DBC File Support

Automatically parses DBC files and converts raw CAN frames into human‑readable signals (e.g., Engine_Temp: 90°C).

🎯 Perfect For

• Automotive diagnostics

• Embedded firmware development

• Robotics and automation

• EV systems

• Industrial CAN networks

• Education and research

📩 Contact

Have questions or need support?

inka@inkatech.ca
